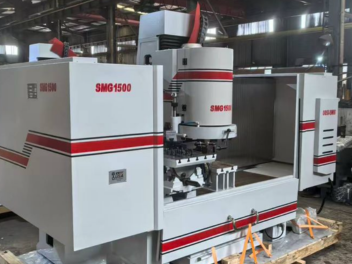

SMG1500 Cylinder Head & Block Resurfacing Machine

The SMG1500 is a high-precision surfacing machine designed for resurfacing cylinder heads and engine blocks — with a working range from the smallest passenger car heads to large heavy-duty diesel heads and blocks. Two configurations are available: the SM1500 for dry cutting / milling only, and the SMG1500 for both dry cutting and wet grinding. (An SM1500 can be upgraded to an SMG1500 by adding the wet grinding package.)

Built around a traveling-column design with linear roller bearing slideways, the machine delivers a super fine surface finish — RA 3.2 with milling and RA 1.6 with wet grinding — at an accuracy of 0.0001" (0.01 mm) on both vertical and horizontal axes. A Taida Delta touch-screen control with programmable length of part, rapid feed, and electronic handwheel makes the machine fast to set up and easy to learn.

Precision Head & Block Resurfacing

Touch Screen Control & Operation

Industrial-Grade Machine Design

Consistent Surface Finish Results

Programmable Length of Part

Wet Grinding Upgrade Available

Key Features

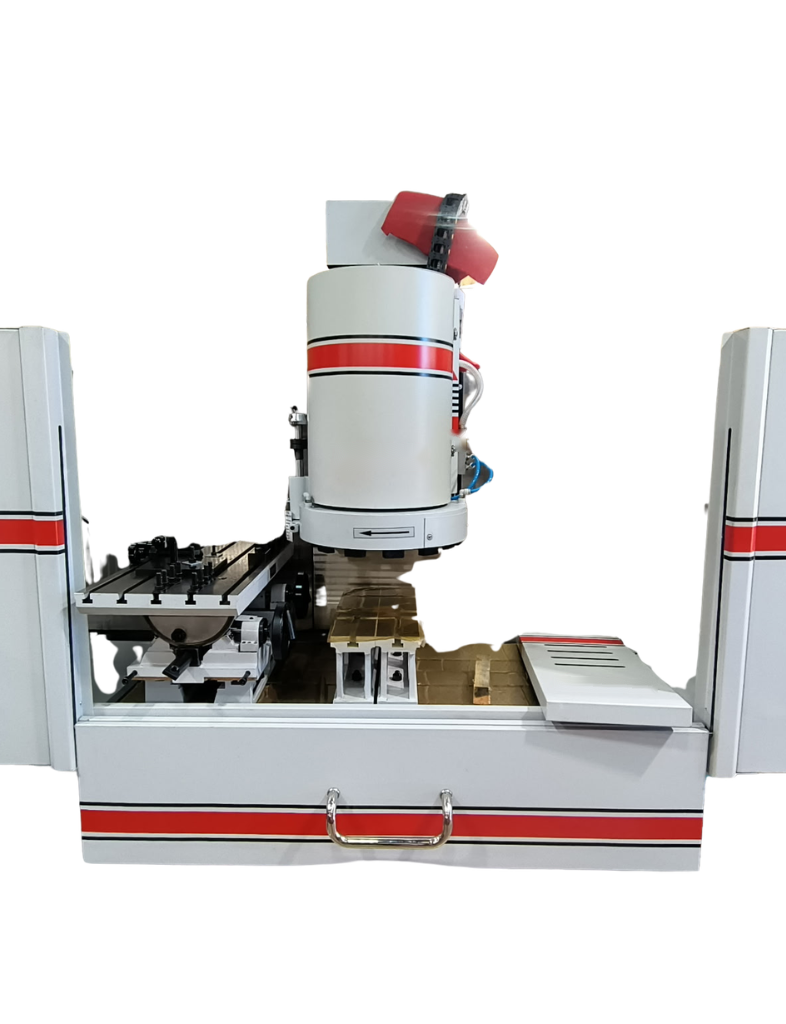

Traveling Column Design: Reduces shop floor space requirements and improves machining accuracy compared to fixed-column designs.
Linear Roller Bearing Slideways: Smooth, rigid motion that maintains long-term precision in both vertical and horizontal axes.
500 mm Vertical Travel: Increased clearance capacity for large heavy-duty diesel heads and blocks.
Super Fine Surface Finish: RA 3.2 with milling, RA 1.6 with wet grinding.
0.0001" / 0.01 mm Positioning Accuracy: Touch-screen digital readout shows the exact vertical and horizontal position at all times.

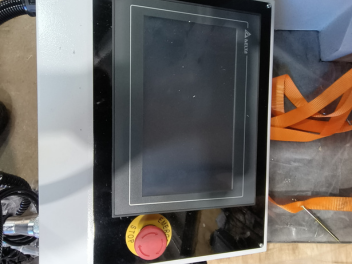

Taida Delta Touch-Screen Control: Single-screen operation — all machine functions on one screen, no menu hunting.
Programmable Length of Part: Input the required length once and the machine travels home automatically when the cycle completes.
Rapid Feed via Touchscreen: Manual axis feed with on-screen slider bars; no conventional handwheel required.
Electronic Handwheel & American/Metric Modes: Easily switch between inch and millimeter display.
Direct-Drive Axis Motors: Reliable power delivery with fewer wear parts.
Universal T-Slot Base: Standard fixturing for a wide range of cylinder heads and blocks.

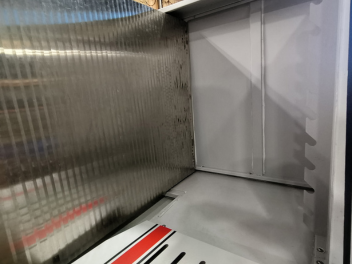

Folding / Hinged Doors & Enclosed Safety Chamber: Contains debris and coolant while keeping the workspace accessible.
Chip Collection System: Built-in chip management for cleaner operation and easier maintenance.
Tooling Compatibility: Accepts CBN (Cubic Boron Nitride) and PCD (Poly-Crystalline Diamond) inserts, plus grinding stones for the SMG1500 wet-grinding configuration.
Two Available Configurations: SM1500 (dry cutting / milling) and SMG1500 (dry cutting + wet grinding) — SM1500 can be upgraded to SMG1500 by adding the wet grinding package.

Top Use Cases For The SM1500 / SMG1500 Surfacing Machines

Cylinder Head Resurfacing & Restoration – Ideal for precision resurfacing of aluminum and cast iron cylinder heads to restore flatness and ensure proper head gasket sealing.
Engine Block Deck Resurfacing – Designed for accurate resurfacing of engine block decks, improving compression integrity and long-term engine reliability.
Wide Working Range – Handles everything from the smallest passenger car cylinder heads to large heavy-duty diesel heads and blocks in a single machine.
Automotive, Diesel & Industrial Engine Rebuilding – Perfect for professional machine shops servicing automotive, heavy-duty diesel, and industrial engines requiring consistent, high-quality surface finishes.
