SDMC BV60 Valve Guide & Seat Machine

Key Features

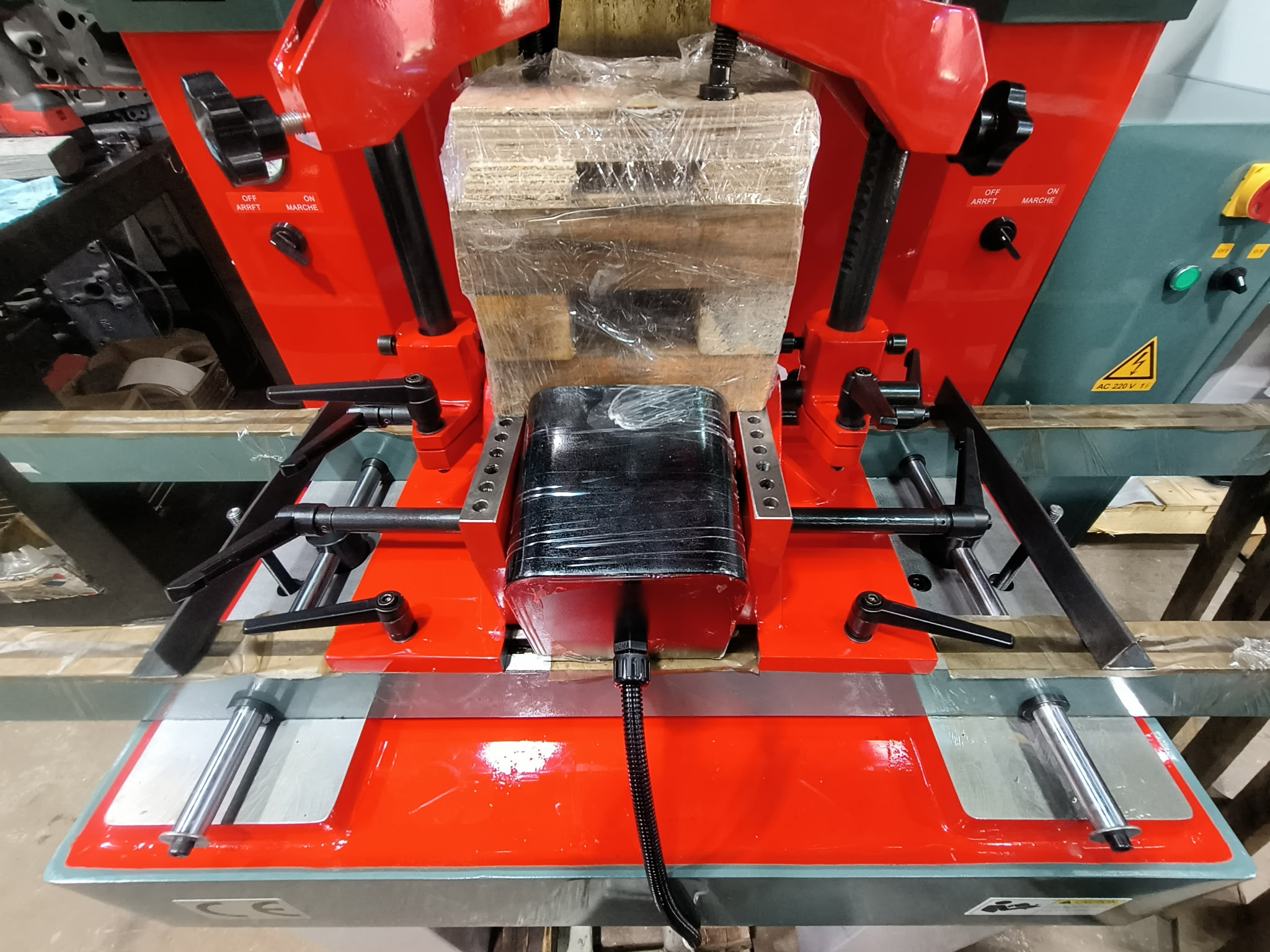

• Triple Air-Flotation Self-Centering System — Three air-float stages let the spindle automatically align to each valve guide for precise concentricity, even on misaligned or angled guides.
• Seat Diameter Capacity: 16 mm – 60 mm (0.63″ – 2.36″) — Covers motorcycle, small-engine, automotive, and light-duty diesel valve seats.

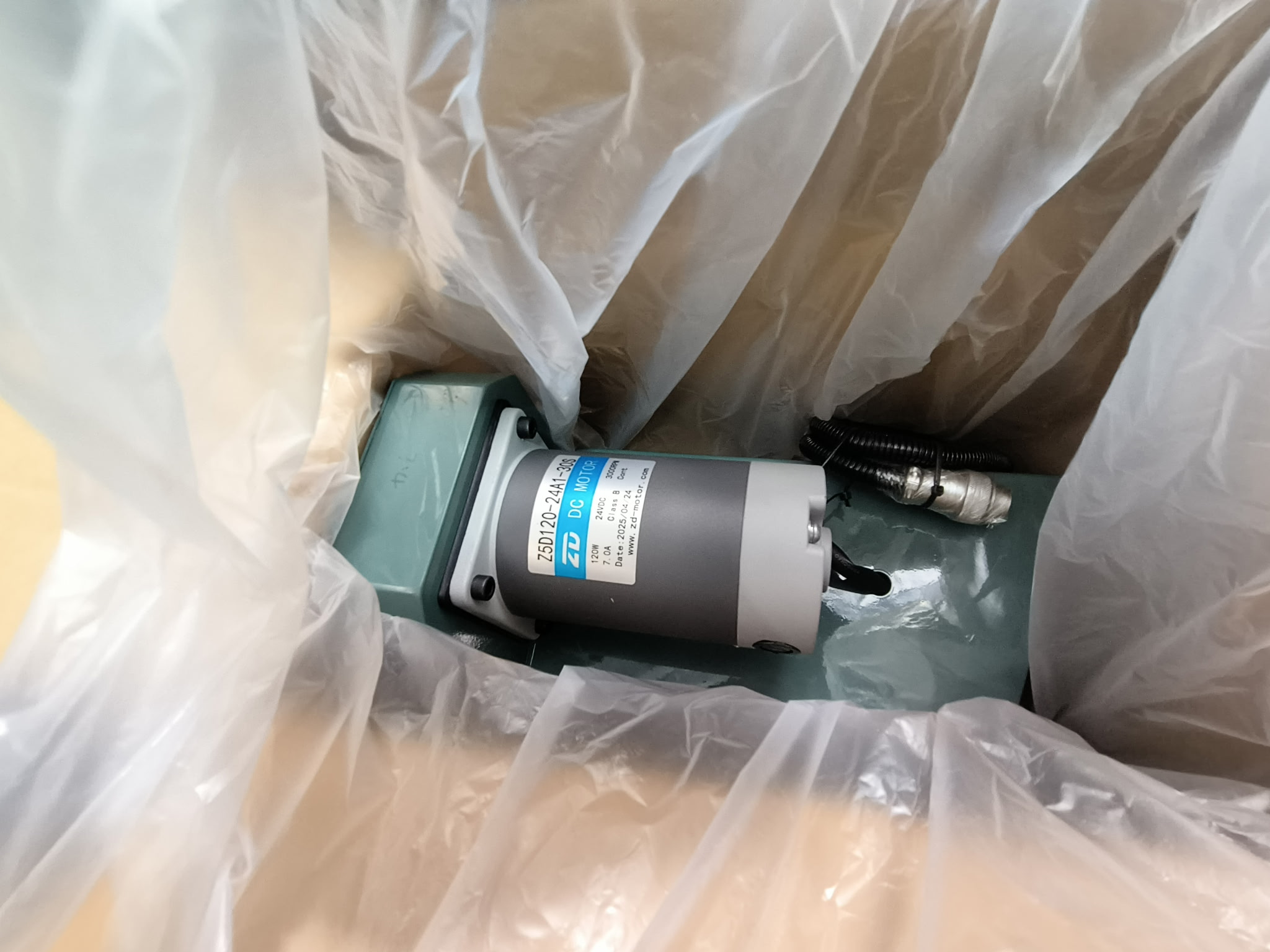

• 1.2 kW Built-In Spindle Motor with Constant 18 N·m Torque — Steady cutting power for hardened seats and consistent finish across long production runs.

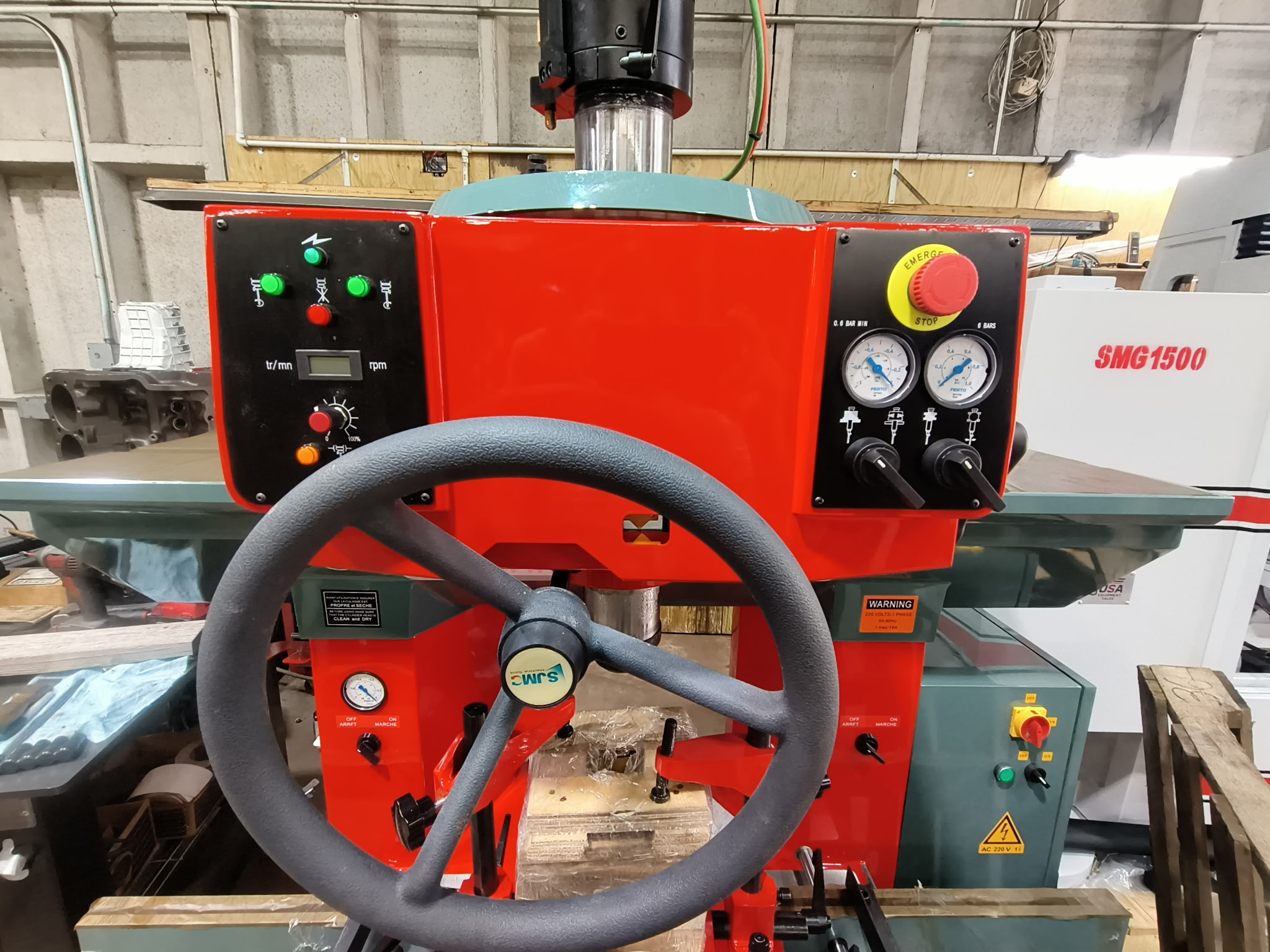

• Dual-Range Variable Spindle Speed (50–600 rpm low / 600–1,000 rpm high) — Operator-selectable speed bands optimize cutting performance for different seat materials and diameters.
• 200 mm Spindle Travel with 5° Spindle Swing Angle — Generous vertical reach plus angular adjustment for inclined valve-guide heads.
• Minimum Guide Compatibility Down to 4 mm — Works with the small-diameter pilots needed for compact engine and motorcycle heads.
• FESTO Pneumatic + Schneider Electric Components — Industry-standard pneumatic and electrical sub-assemblies make maintenance and parts sourcing straightforward.

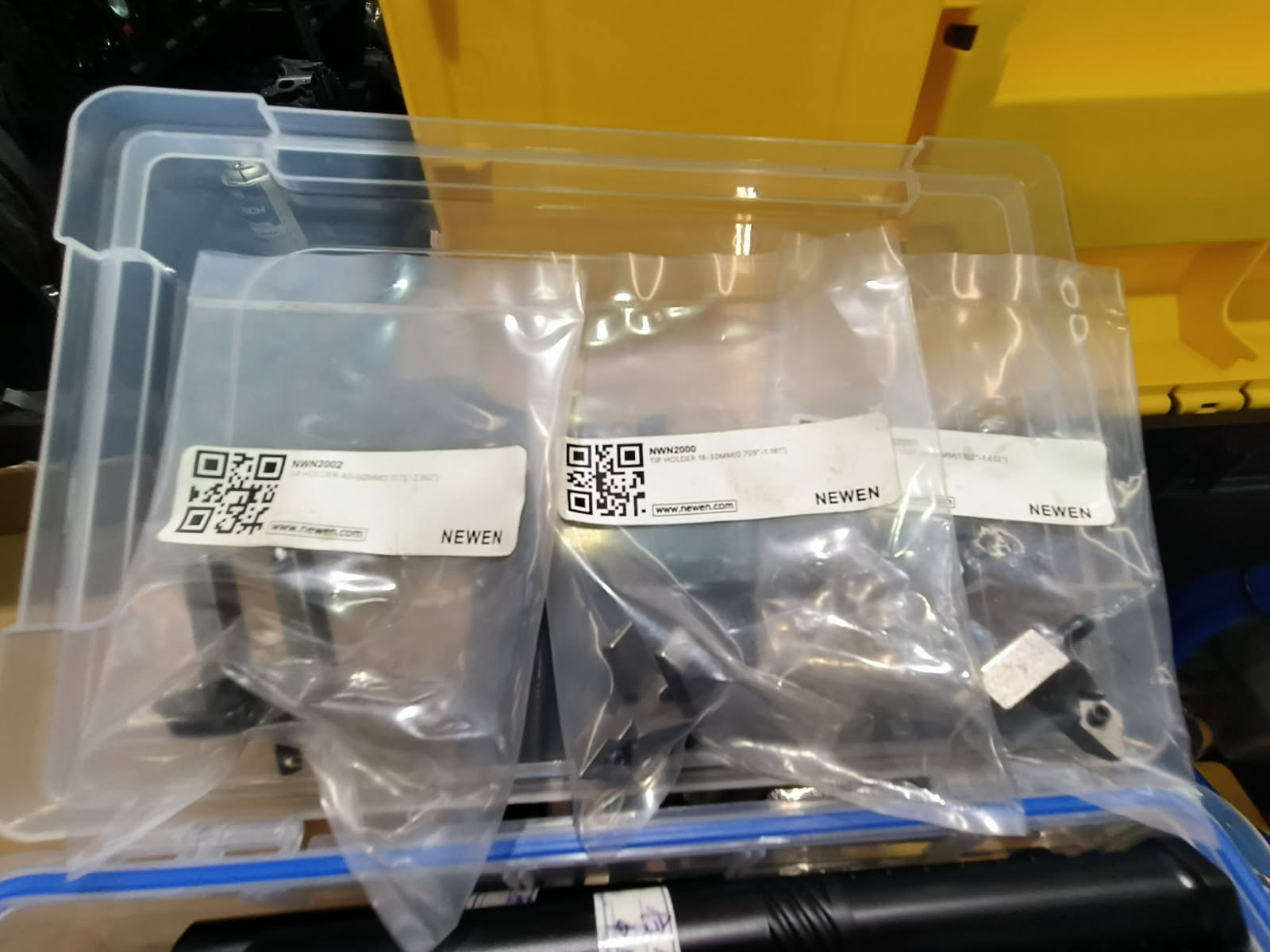

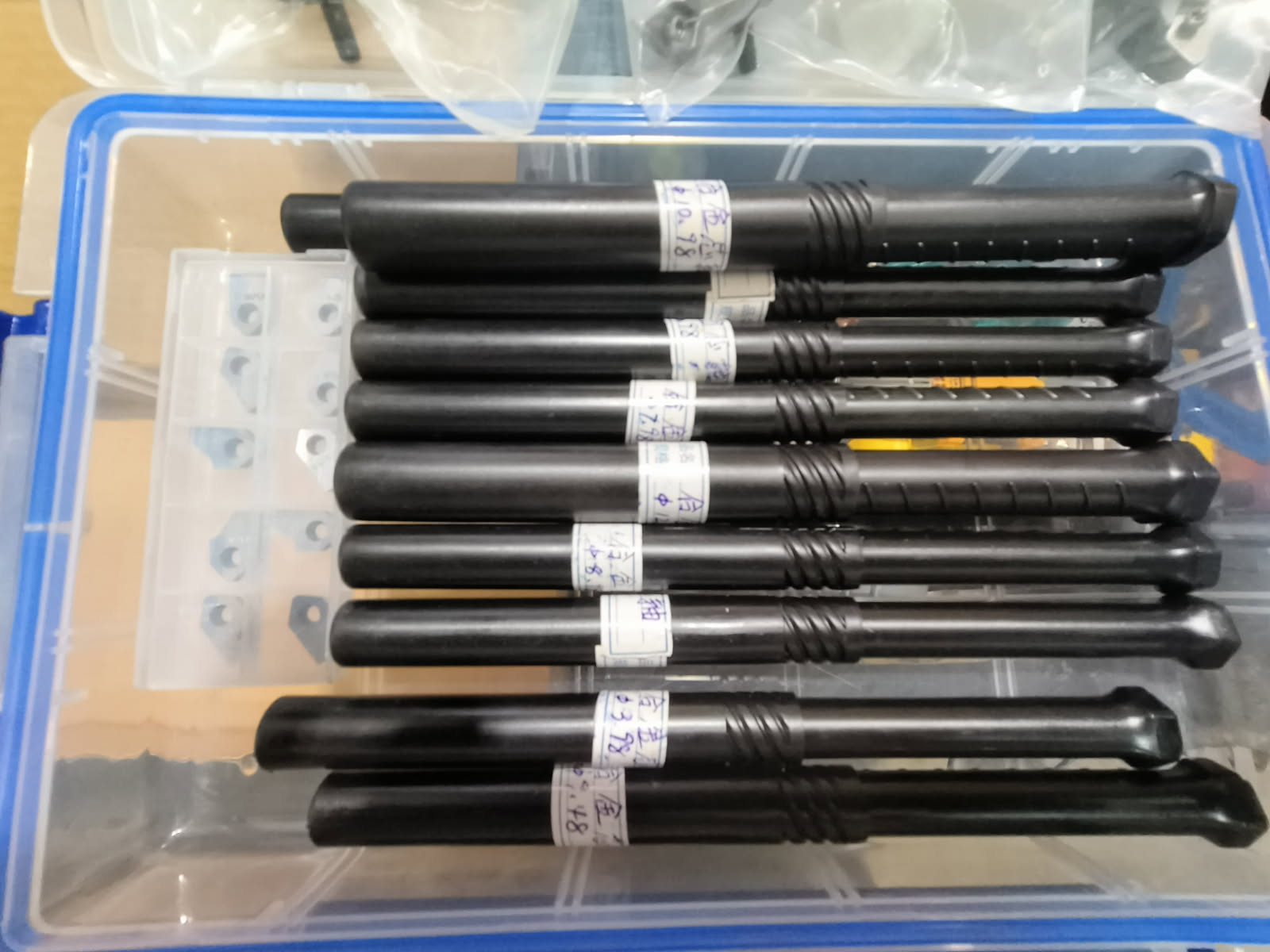

• Includes NEWEN-Compatible Carbide Tooling Package — Carbide tip holders (18–50 mm and 40–90 mm), carbide tips, and Ø9.525 mm carbide pilots ship with the machine for immediate seat and guide work.
